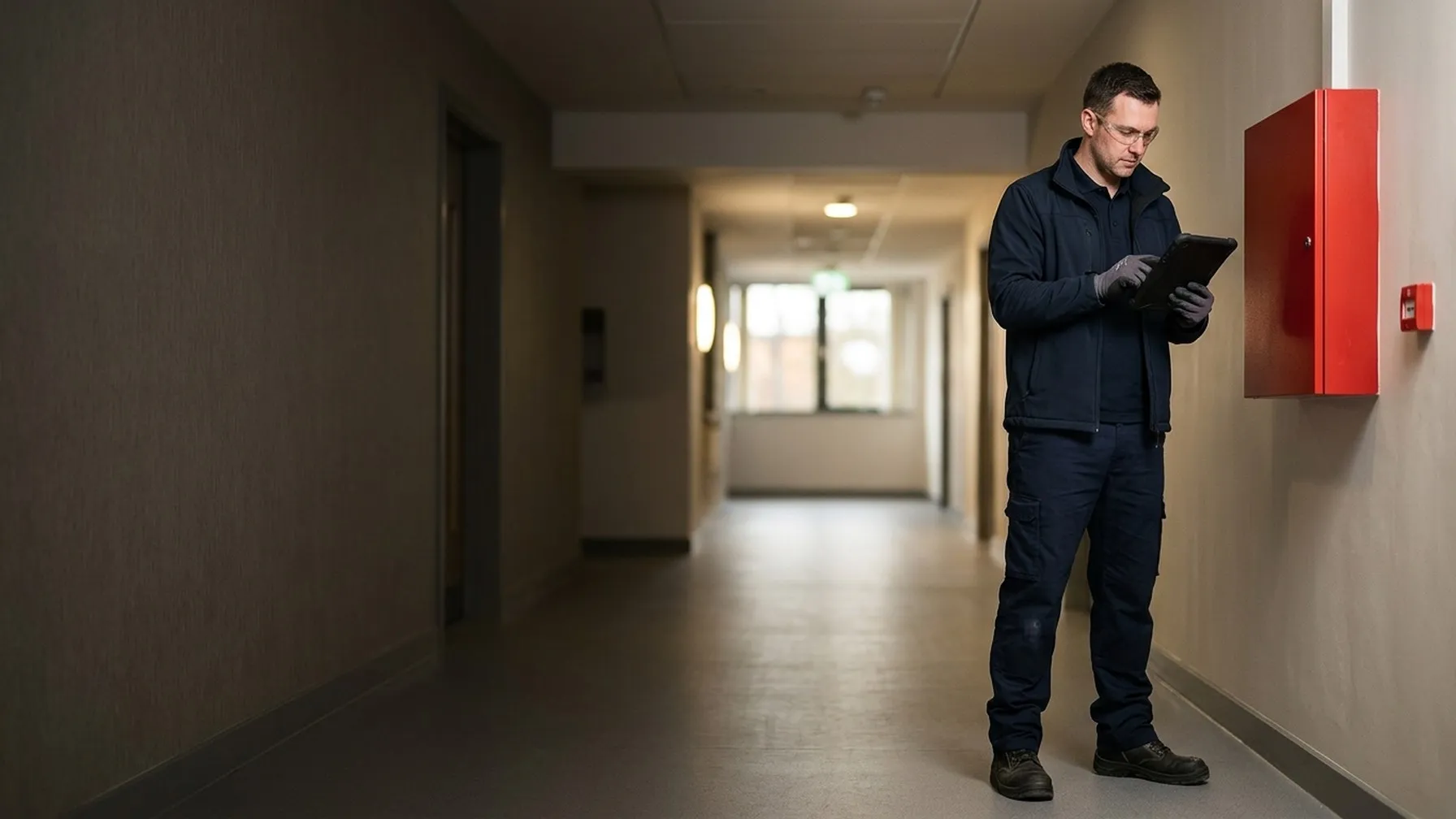

Fire alarm engineer inspecting an alarm panel in a commercial building

BS 5839-1:2025 Clause 4; BS 5839-6

System Categories

A compact map of non-domestic life/property categories and domestic grades and coverage categories.

About system categories

A fire alarm category is a statement of what the system is for and how far detection reaches — not a measure of quality. An L1 system is not a "better" L3; it answers a different question about a different building. The category belongs in the fire strategy and the fire risk assessment, and everything downstream — detector siting, zoning, cause and effect, cost — follows from it.

Two families cover non-domestic premises. The M and L categories protect life; the P categories protect property and business continuity. They are routinely combined, so a real specification often reads something like L3/P2: escape routes and the rooms opening onto them for life safety, plus detection in defined high-risk areas for property.

Domestic and residential premises are a separate world under BS 5839-6, using Grades for the system’s power and control arrangement and LD categories for how far detection extends. The letters look similar to the non-domestic ones and mean something different, which is where most of the confusion starts.

Non-domestic systems

Read the L categories as a ladder of coverage. L4 covers the escape routes themselves. L3 adds the rooms that open onto those routes, so a fire is detected before it can cut off the way out. L2 adds specific higher-risk areas on top of L3. L1 covers essentially everywhere. L5 sits outside the ladder: it is whatever an engineered design needs it to be, justified against a stated objective.

M
Manual call points only; no automatic detection.
L1
Automatic detection throughout, aimed at the earliest warning for life safety.
L2
L3 coverage plus defined higher-risk or specified areas.
L3
Escape routes and rooms opening onto those routes.
L4
Escape routes and circulation spaces only.
L5
An engineered system designed around a specific life-safety objective.
P1 / P2
Property protection throughout / in defined higher-risk areas.

Categories can be combined. The category should come from the fire strategy and risk assessment, not from this summary alone.

Domestic systems

BS 5839-6 splits the question in two. The Grade describes the equipment — how the system is powered, controlled and backed up. The LD category describes the coverage, in the same escalating way the L categories do for non-domestic buildings. A specification needs both: Grade D1 LD2 is a common example, and neither half means much on its own.

Grades A, C, D1/D2, F1/F2
Describe the power, control and standby arrangement of the alarm system.
LD1
Circulation areas and all rooms or areas.
LD2
Circulation areas plus defined higher-risk rooms.
LD3
Circulation areas forming escape routes.

Domestic systems are covered by BS 5839-6 rather than BS 5839-1.

Common questions

What is the difference between an L2 and an L3 fire alarm system?

L3 covers escape routes plus the rooms that open onto them. L2 is an L3 system with automatic detection added in defined higher-risk areas as well — so every L2 system includes everything an L3 system would have. Which areas count as higher risk comes from the fire risk assessment, not from the category letter.

What does an L3 system actually require?

Detection on the escape routes and in rooms opening onto those routes, so that a fire in an adjoining room is picked up before smoke reaches the route people are leaving by. It does not require detection in every room. The precise extent still comes from the fire strategy for the building.

What is the difference between LD1, LD2 and LD3?

LD3 covers circulation areas forming escape routes. LD2 adds defined higher-risk rooms. LD1 covers circulation areas and all rooms or areas. They are the BS 5839-6 domestic equivalents of the L ladder, and they are always paired with a Grade describing the system itself.

Can a building have more than one category?

Yes, and many do. Life and property categories are commonly combined — L3/P2, for example — because they answer different questions. Different parts of a building can also warrant different coverage.

Is a Category M system ever enough on its own?

It can be, where the building is occupied whenever the fire risk is present, because a Category M system relies on people discovering the fire and operating a call point. It is not appropriate where anyone sleeps, or where a fire could develop unnoticed.

Source context: BS 5839-1:2025 Clause 4; BS 5839-6. This page paraphrases the app’s quick-reference material and does not reproduce or replace the standard.
